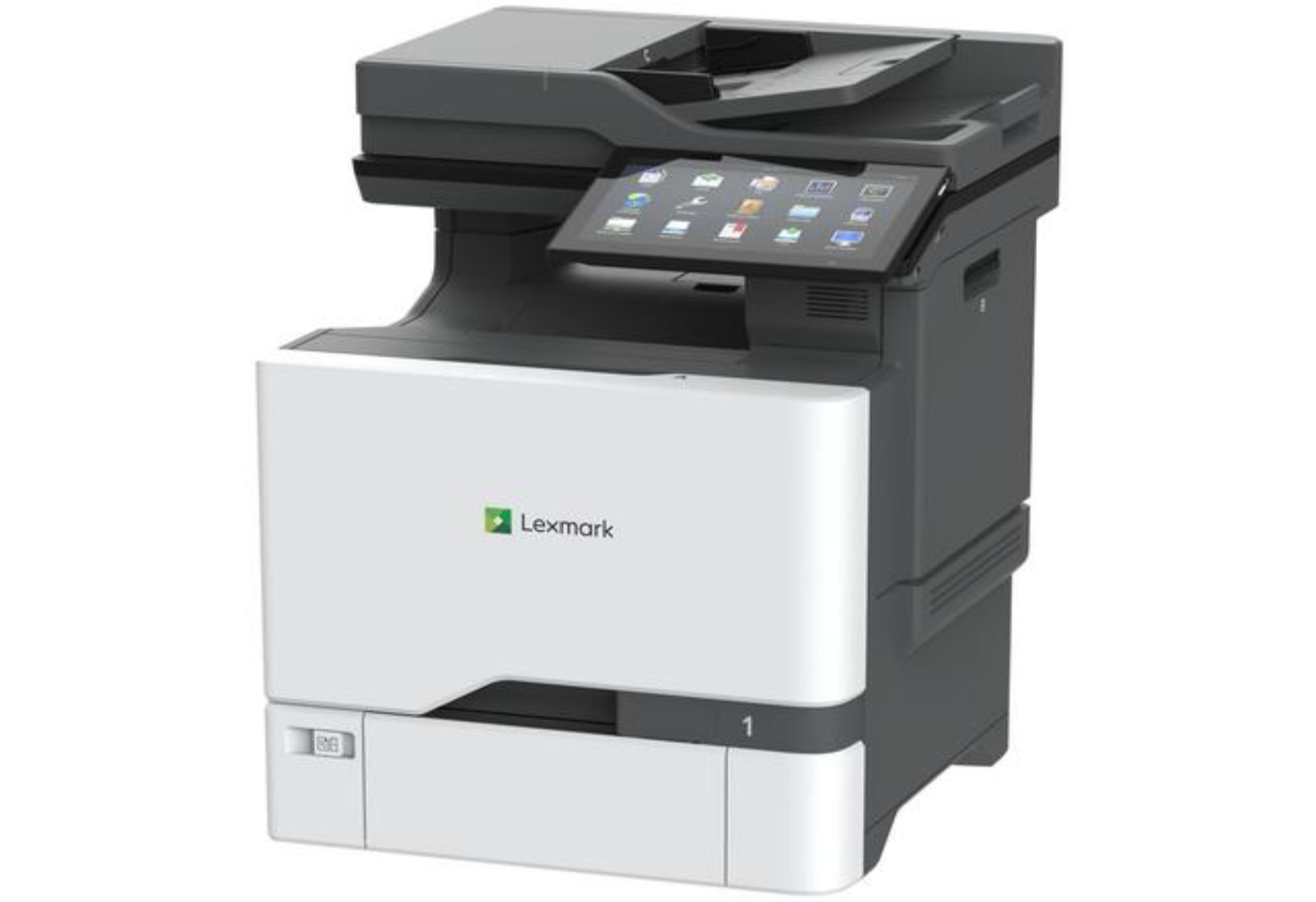

Lexmark CX735adse

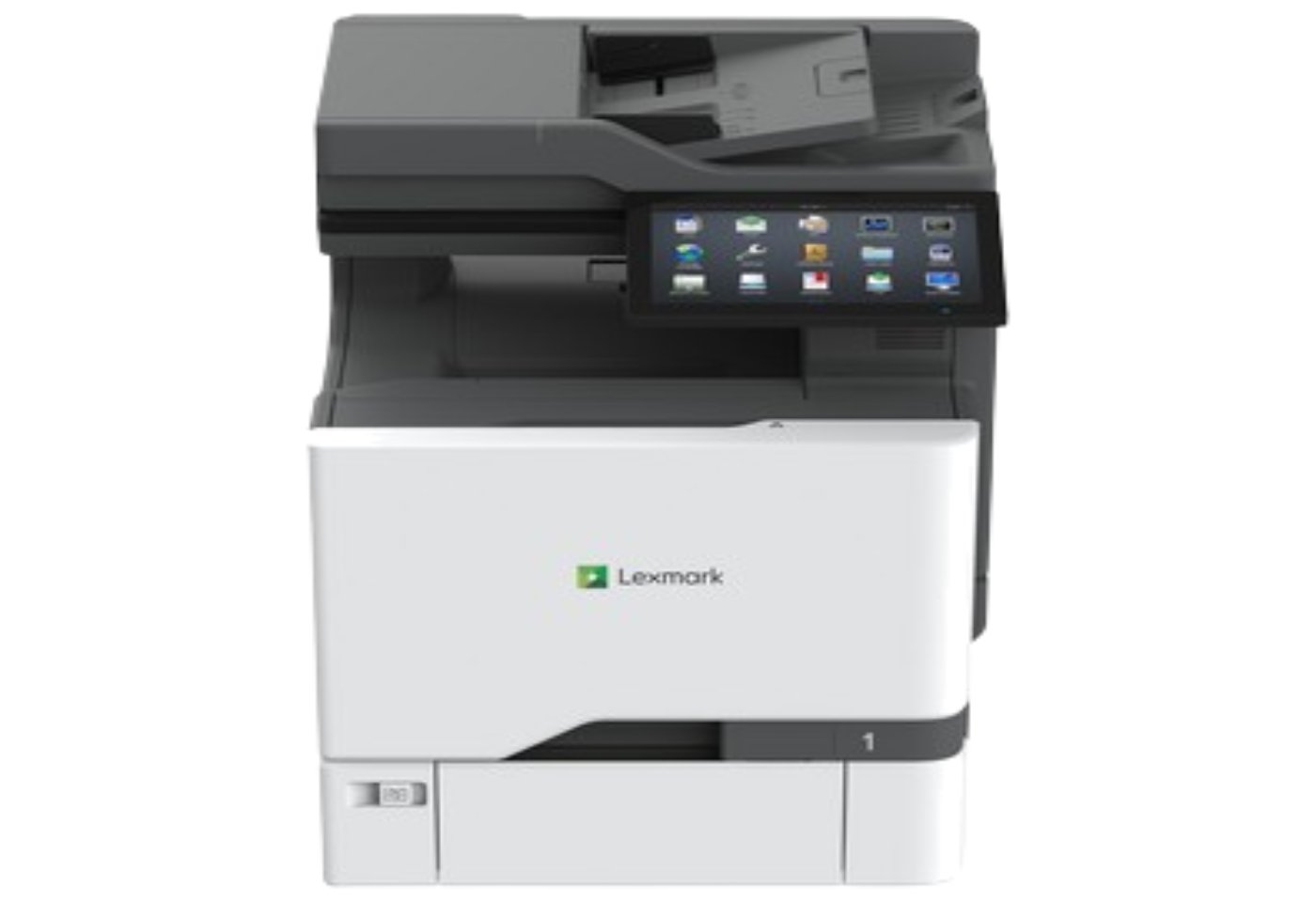

Lexmark CX735adse - Image 2

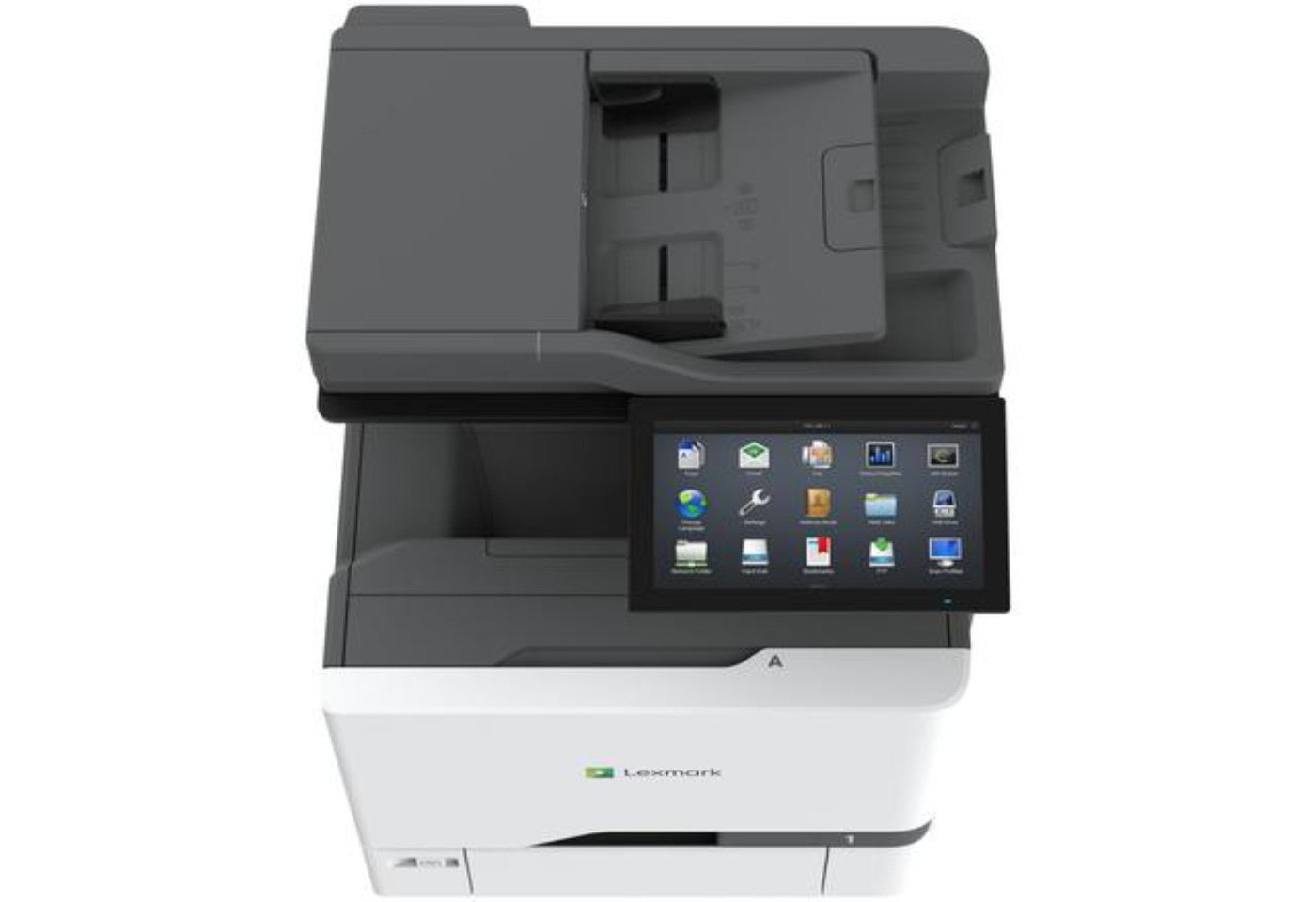

Lexmark CX735adse - Image 3
Lexmark CX735adse - Image 4

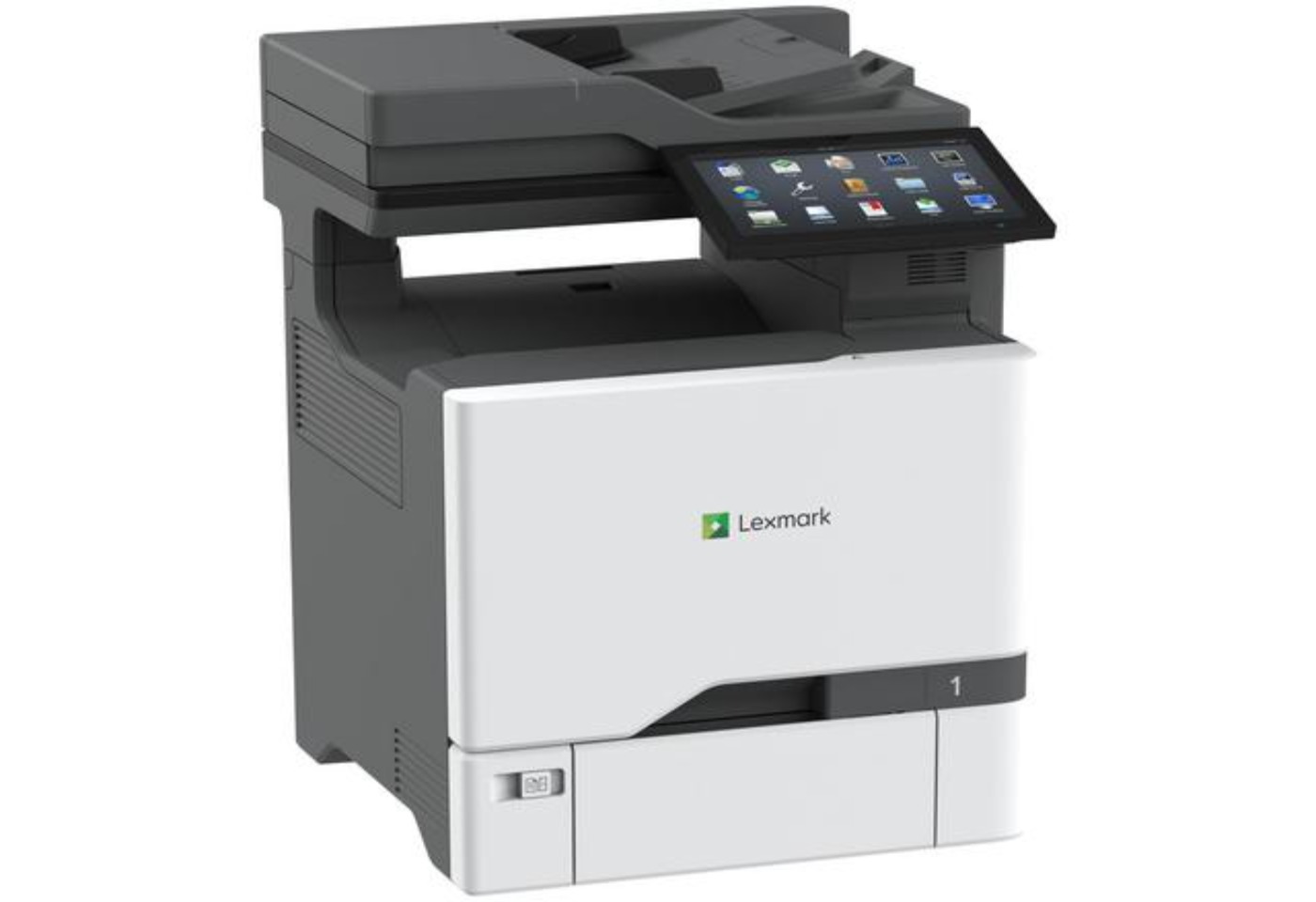

Lexmark CX735adse - Image 5

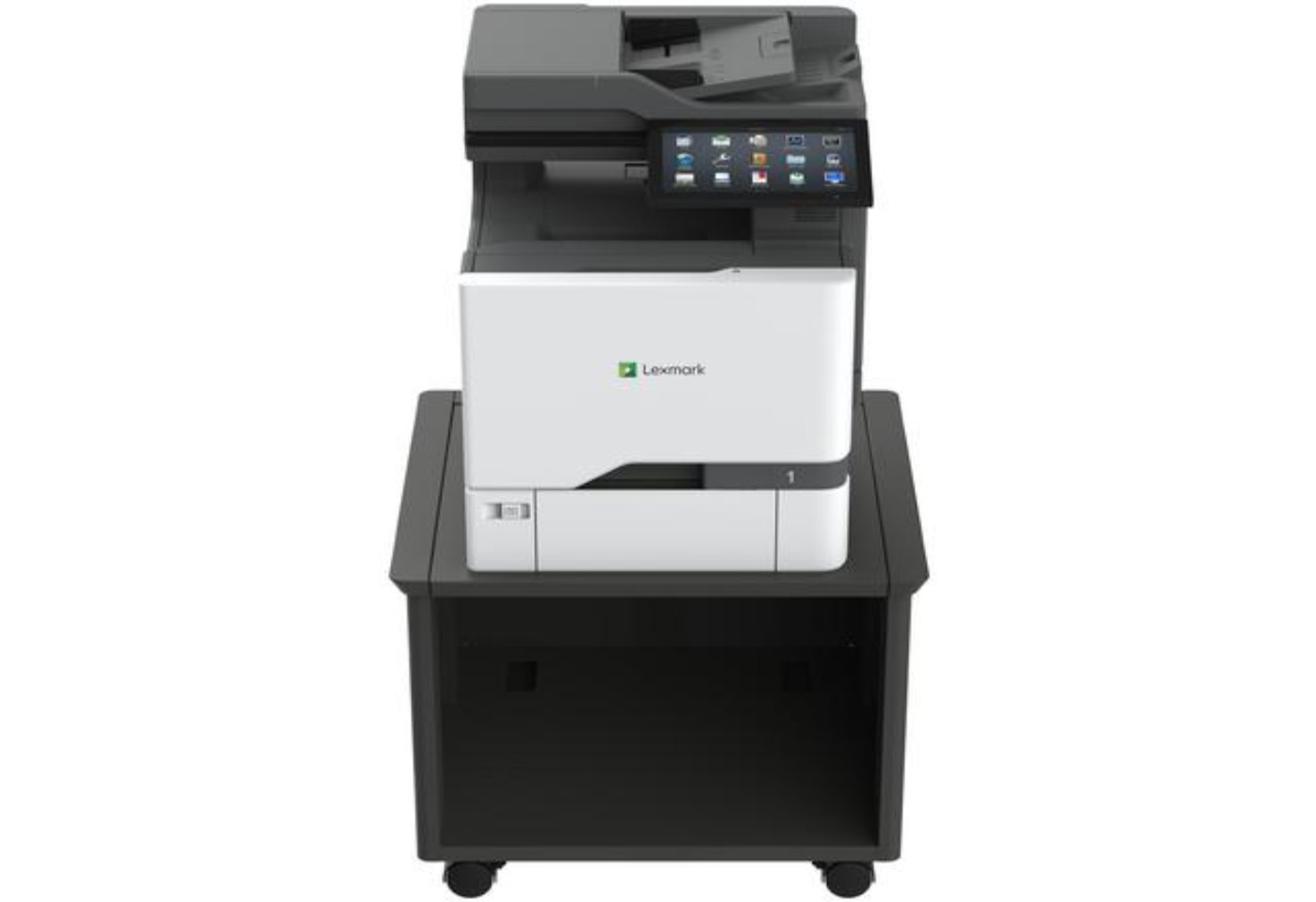

Lexmark CX735adse - Image 6

Lexmark CX735adse

Features

  • Colour Laser
  • Duplex (2-sided) Printing: Integrated Duplex
  • Recommended Monthly Page Volume: 2000 – 20000 pages†
  • 1-Year Onsite Service
  • energy star logo
  • warranty logo

This is an FCC Class A device. Not intended for use in residential or domestic environments.

Categories: ,

Description

Reviews

There are no reviews yet.

Be the first to review “Lexmark CX735adse”

Overview

Marketing Description

The Lexmark CX735adse is designed for performance, security and ease of use for mid-to-large workgroups at speeds of up to 50 pages per minute*.

Put the Internet of Things (IoT) to work for you

Our sophisticated, IoT-enabled printers are loaded with sensors that continuously monitor hundreds of data points. When you connect your device to Lexmark Cloud Services, you can optimise performance and uptime with additional features like predictive service and automatic replenishment of supplies.

Focus on sustainability

Automatic two-sided printing is standard, along with built-in energy-saving modes that help to support ratings of EPEAT® Silver and ENERGY STAR® certified. The award-winning Lexmark Cartridge Collection Programme (LCCP) and Lexmark Equipment Collection Programme (LECP) minimise waste and support recycling (availability varies by country).

Go with the flow

Get into the flow with standard access to built-in workflow solutions like Scan Centre, an easy-to-use app that simplifies routing to multiple destinations simultaneously. Plus, you can add other Lexmark or third-party partner solutions that meet your specific business needs.

Faster performance and ease of use

Experience faster performance and ease of use thanks to single-pass two-sided scanning with ultrasonic multifeed detection, and a large, tablet-like, button-free touchscreen that helps users to intuitively complete every task, from the basic to the complex.

Robust, enduring quality

Our robust multifunction products produce high-quality colour output in a wide variety of environments – from back-office to harsh manufacturing conditions. With durable steel frames, long-life components and replacement cartridge yields of up to 28,000/16,200 black/colour pages**, our devices are intentionally engineered to last many years. Plus, they can be upgraded for the latest security features and new device functionality.

Secure by design

Lexmark security features help to keep your information safe – in the document, on the device, over the network and at all points in between. Always improving security, we now include a standard Trusted Platform Module***, which delivers authentication, system integrity checks, and cryptographic capabilities to create a unique digital system fingerprint.

***The Trusted Platform Module (TPM) is not available in some countries.

**Average continuous black or continuous composite colour (CMY) declared yield in one-sided (simplex) mode of up to this number of pages in accordance with ISO/IEC 19798.

*Print speeds measured in accordance with ISO/IEC 24734 (ESAT). For more information see: www.lexmark.com/ISOspeeds.

Specs

In the Box

  • Statement of limited warranty / guarantee
  • Setup Guides (network and local attachment)
  • RJ-11 Phone cable (country dependent)
  • Power Cord(s)
  • Software and Documentation CD
  • Up to 150,000 pages** return programme imaging unit
  • Up to 5,000*-page black, cyan, magenta, yellow toner cartridges
  • Lexmark CX735adse colour laser multifunction printer with ISD
  • Lexmark Cartridge Collection Programme information

Box contents may vary by country and/or reseller. Subject to change without notice.

Ethernet, USB or parallel cable not included.

** Imaging unit maximum yield estimate based on 3 average letter/A4-size pages per print job and 5% average coverage per page. Actual Yield may vary based on other factors such as device speed, paper size and feed orientation, toner coverage, tray source, percentage of black-only printing and average print job complexity.

* Average continuous black or continuous composite CMY declared cartridge yield up to this number of standard pages in accordance with ISO/IEC 19798.

General Specs

Part no. 47C9667
Print Technology
  • Colour Laser
Function
  • Intelligent Storage Device (ISD) Standard
  • Analogue Fax Standard
  • Colour Copying
  • Colour Faxing
  • Colour Printing
  • Colour Scanning
  • Colour Network Scanning
  • Trusted Platform Module (TPM)1
Workgroup Size
  • Medium-Large Workgroup
Display

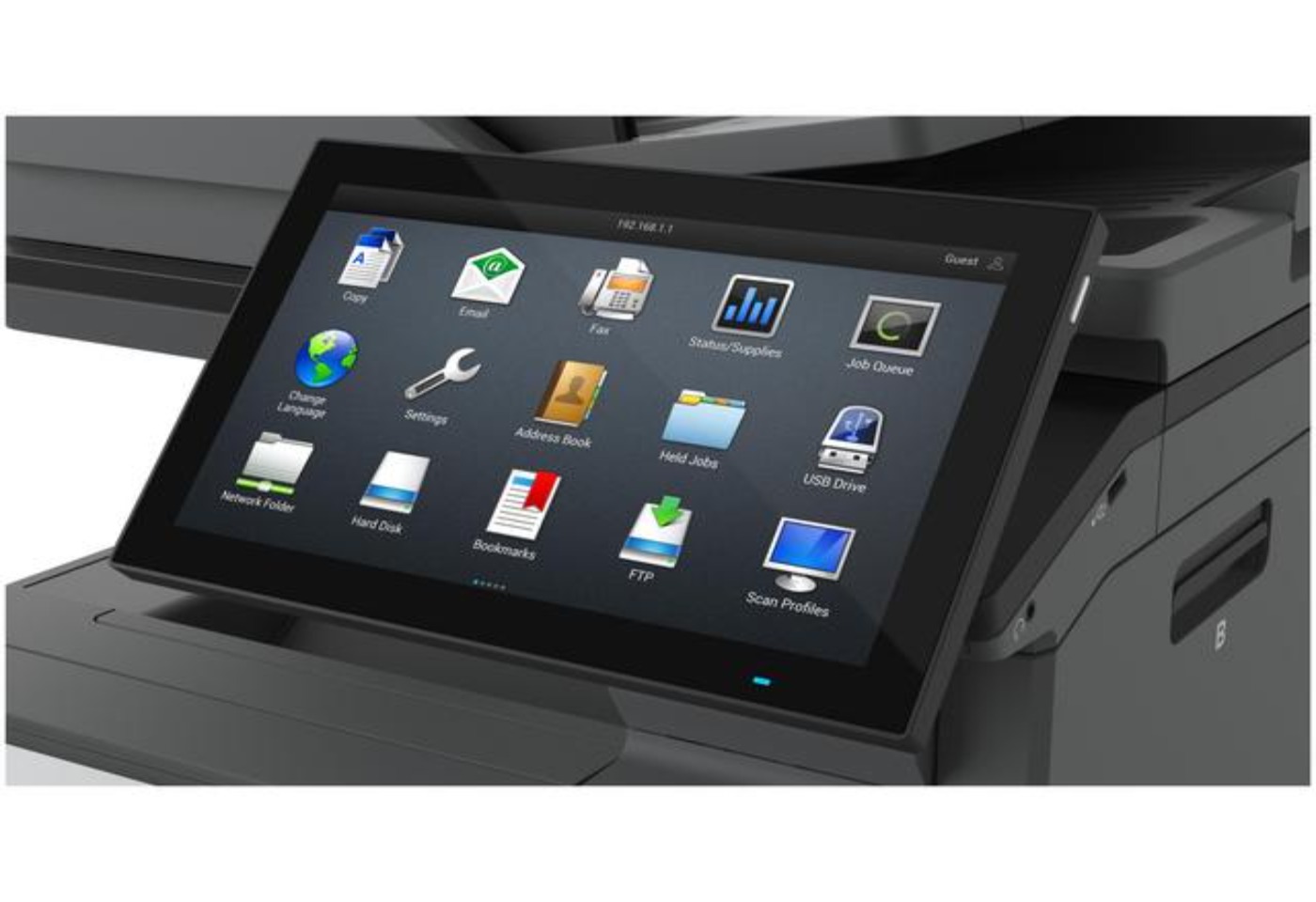

  • Lexmark e-Task 10.1-inch (25.6 cm) colour touch screen
Media Sizes Supported
  • A6, Oficio, 7 3/4 Envelope, 9 Envelope, JIS-B5, A4, Legal, A5, Letter, B5 Envelope, Statement, C5 Envelope, Executive, Universal, DL Envelope, Folio, 10 Envelope
Included Paper Handling
  • 100-Sheet Multipurpose Feeder, Integrated Duplex, 300-Sheet Output Bin, 550-Sheet Input
Standard Ports
  • Gigabit Ethernet (10/100/1000), Front USB 2.0 Specification Hi-Speed Certified port (Type A), Rear Hi-Speed USB port Compatible with USB 2.0 Specification (Type A), USB 2.0 Specification Hi-Speed Certified (Type B), One Internal Card Slot
Size (mm – H x W x D)
  • 621 x 479 x 533 mm
Weight
  • 39.5 kg
Packaged Size (mm – H x W x D)
  • 838 x 700 x 735 mm
Packaged Weight, kg
  • 53 kg

Copying

Copy Speed
  • Up to:
  • Black: 50 cpm2 (A4)
  • Colour: 50 cpm2 (A4)
Time to First Copy
  • as fast as:
  • Black: 5.7 seconds
  • Colour: 6.3 seconds
Reduce / Enlarge Range
  • 25 – 400 %

Faxing

Modem Speed
  • ITU T.30, V.34 Half-Duplex, 33.6 Kbps
Fax Transmission Speed
  • < 3 seconds per page

Printing

Print Speed
  • Up to:
  • Black: 50 ppm2 (A4)
  • Colour: 50 ppm2 (A4)
Print Speed Duplex
  • Up to:
  • Black: 38 spm2 (A4)
Time to First Page
  • as fast as:
  • Black: 5.6 seconds
  • Colour: 6.1 seconds
Print Resolution
  • Black: 1200 x 1200 dpi, 4800 Colour Quality (2400 x 600 dpi)
  • Colour: 4800 CQ (2400 x 600 dpi), 1200 x 1200 dpi
Duplex
  • 2-sided:
  • Integrated Duplex
Printable Area
  • metric: 4.2 mm of the top, bottom, right and left edges (within)

Scanning

Scanner Type / ADF Scan
  • Flatbed scanner with ADF
  • DADF (single pass Duplex)
Scan Area
  • mm:
  • 216 x 356 mm (Maximum)
A4/Ltr Simplex Scan Speed / Scan Speed (A4/Ltr
  • Up to:
  • Black: 49 / 52 sides per minute
  • Colour): 49 / 52 sides per minute
A4/Ltr Duplex Scan Speed / Duplex Scan Speed (A4/Ltr
  • Up to:
  • Black: 98 / 104 sides per minute
  • Colour): 98 / 104 sides per minute
Scan Technology
  • Trilinear CIS
Scan Resolution
  • Enhanced: Up to 600 X 600 dpi
  • Optical: Up to 600 dpi
Scan File Formats
  • Send as:
  • TIFF, Archival PDF (A-1a, A-1b), Highly compressed PDF, Secure PDF, PDF, JPEG, JPG, Searchable PDF
Scan Destinations
  • e-mail, Lexmark Document Solutions Suite (LDSS), USB or Network connected computer, USB Flash drive, FTP
ADF
  • 100-Sheet Automatic Document Feeder
ADF Paper Input Capacity / ADF Paper Output Capacity
  • Up to: 100 pages 75 gsm bond
  • Up to: 100 pages 75 gsm bond

Paper Handling

Media Types Supported
  • Vinyl Labels, Banner Paper, Paper Labels, Card Stock, Plain Paper, Envelopes, Refer to the Paper & Specialty Media Guide
Finishing Option
  • No
Number of Paper Inputs
  • Standard: 2
  • Maximum: 6
Paper Input Capacity
  • Standard: 650 pages 75 gsm bond
  • Maximum: 2850 pages 75 gsm bond
  • 650 pages 75 gsm bond
Paper Output Capacity
  • Up to:
  • Standard: 300 pages 75 gsm bond
  • Maximum: 300 pages 75 gsm bond
Paper Weight Range Supported
  • gsm:
  • 60 – 218 gsm (Standard Tray)
  • 60 – 218 gsm (Multipurpose Feeder)
Integrated Tray Card Stock Upper limit
  • Cover – 176 gsm (grain long)
  • Tag – 163 gsm (grain long)
  • Index Bristol – 199 gsm (grain long)
  • Index Bristol – 199 gsm (110 lb) (grain short)
  • Cover – 216 gsm (grain short)
  • Tag – 203 gsm (125 lb) (grain short)
Optional Paper Handling
  • 550-Sheet Tray
Recommended Monthly Page Volume
  • 2000 – 20000 pages3
Maximum Monthly Duty Cycle
  • Up to:
  • 150000 pages per month4

Cartridges & Imaging

Laser Cartridge Yields
  • up to:
  • 28,0005-page Black Extra High Yield Cartridge
  • 16,2005-page Colour (CMY) Extra High Yield Cartridges
Imaging Unit Estimated Yield
  • Up to:
  • 150000 pages, based on 5 average letter/A4 size pages per print job and ~ 5% coverage for CS/CX96x, CX83x, CX95x, and MX95x printer series, or based on 3 average letter/A4 size pages per print job and ~ 5% coverage for all other printers6
Cartridge(s) Shipping with Product
  • 5,0005-page Black and Colour (CMYK) Return Programme Toner Cartridges5
Replacement Cartridges:
  • Product functions only with replacement cartridges designed for use in a specific geographical region. See www.lexmark.com/regions for more details.

Hardware

Processor Speed
  • Quad Core 1.2 GHz
Memory
  • Standard: 2048 MB
  • Maximum: 2048 MB
Hard Disk
  • Intelligent Storage Drive included; Magnetic Hard Disk (optional)
Printer Languages
  • Standard:
  • PCL 5, PCL 6 Emulation, Personal Printer Data Stream (PPDS), PostScript 3 Emulation, PDF 1.7 emulation, Direct Image
Fonts and Symbol Sets
  • 158 scalable PostScript fonts, For more information, refer to the Technical Reference., 89 scalable PCL 6 fonts, 2 PCL 6 bitmap fonts, 5 PPDS bitmap fonts, 39 scalable PPDS fonts
Touch Screen Display
  • Yes

Connectivity

Direct USB
  • Yes
Ethernet Network
  • Yes
Wireless
  • Wireless Option
Network Protocol Support
  • TCP/IP IPv6, IPSEC w/ IPv4, IPSEC w/ IPv6, TCP/IP IPv4, ICMP, TCP, IGMP, UDP
Network Printing Methods
  • LPR/LPD, FTP, Direct IP (Port 9100), Pull Printing, Microsoft Web Services WSD, Secure IP (Port 96xx), Enhanced IP (Port 9400), ThinPrint .print integration, IPP 1.0, 1.1, 2.0 (Internet Printing Protocol)
Network Management Protocols
  • DHCP7, APIPA (AutoIP)7, BOOTP, RARP7, mDNS7, IGMP7, WINS7, DDNS7, SNMPv37, SNMPv1, SNMPv2c7, Telnet7, NTP7, ICMP7, HTTP7, DNS7, ARP7, HTTPs (SSL7/TLS)7, Finger7
Network Security
  • IPSec, SSL Cipher Configuration, SNMPv3, Certificate Management, 802.1x Authentication: MD5, MSCHAPv2, LEAP, PEAP, TLS, TTLS, TCP/UDP Port Access Control, Security Port Lockdown
Optional Network Ports
  • Internal MarkNet N8370 802.11b/g/n/a Wireless, NFC

Supported Operating Systems

Microsoft Windows Operating Systems Supported
  • Windows Server 2019, Windows 11, Windows 10, Windows Server 2022, Windows 8, Windows 8 x64, Windows 7 x64, Windows Server 2012, Windows Server 2016, Windows RT, Windows Server 2012 R2, Windows 7
Apple Operating Systems Supported
  • Support is provided through AirPrint and AirScan only
Android Operating System Support
  • Support is provided through Mopria® Print Service and Mopria Scan.
Linux Operating Systems Supported
  • Ubuntu 22.04, Fedora 36, Debian 11, SUSE Linux Enterprise Server 12 SP5, Debian 10, Red Hat Linux 9.1, Ubuntu 20.04, OpenSUSE 15.4, OpenSUSE 15.2, Red Hat Linux 8.7, Fedora 37, SUSE Linux Enterprise Server 15 SP4
Citrix MetaFrame
  • Microsoft Windows Server 2012 R2 Datacenter Edition running Citrix XenApp 7.5, 6, 7, 8, 9, 11, 12, 13, 14, 15, 16, Microsoft Windows Server 2012 Datacenter Edition running Citrix XenApp 7.5, 6, 7, 8, 9, 11, 12, 13, 14, 15, 16, Microsoft Windows Server 2012 Essentials running Citrix XenApp 6.0, 6.5, Microsoft Windows Server 2012 Foundation running Citrix XenApp 6.0, 6.5, Microsoft Windows Server 2012 Standard running Citrix XenApp 6.0, 6.5
Novell Operating Systems Supported
  • Novell NetWare 6.5 Open Enterprise Server, Novell Open Enterprise Server 15 (SP1) on SuSE Linux Enterprise Server 11 SP4 (x86 and x64), Novell Open Enterprise Server 11 (SP3) on SuSE Linux Enterprise Server 12 SP1 (x86 and x64), Novell Open Enterprise Server 11 on SUSE Linux Enterprise Server 11, Novell Open Enterprise Server 2 on SUSE Linux Enterprise Server 10 SP4

Electrical & Operation

ENERGY STAR
  • Yes
ENERGY STAR Typical Electricity Consumption
  • TEC:
  • 0.69 kilowatt-hours per week
Noise Level
  • Operating:
  • 14 dBA (Idle)
  • 53 dBA (Print)
  • 56 dBA (Copy)
  • 51 dBA (Scan)
Duplex Print Noise Level
  • Operating:
  • 55 dBA
Average Power
  • 0.1 watts (Hibernate Mode)
  • 1.2 watts (Sleep Mode)
  • 66 watts (Ready Mode)
  • 760 watts (Printing)
  • 800 watts (Copying)
  • 45 watts (Scanning)
Specified Operating Environment
  • Humidity: 8 to 80% Relative Humidity
  • Temperature: 10 to 32°C
  • Altitude: 0 – 2896 metres
Product Certifications
  • ENERGY STAR, ICES-003 Class A, BSMI Class A, VCCI Class A, FCC Class A, NOM-032, UL, cUL, NOM, US FDA/CDRH, IEC 60825-1, CB Report, ISO-532B, CE (EU) DoC, EFTA (CE), KC logo, CCC, C-tick DoC, EuP, CECP, CEL, EC 1275/2008, ECMA-370, TED, SII, TER, SABS, UL-AR, GS Mark, Green Dot, ISO-9296, COC, EPEAT, China Green Product (CGP), Mopria Certified, Blue Angel / RAL-UZ 219
UNSPSC Code
  • 43212110
Country of Origin
  • China (PRC), Mexico
License/Agreement Terms
  • Printers are sold subject to certain license/agreement conditions. See www.lexmark.com/printerlicense for details.

Warranties

Product Warranty
  • 1-Year Onsite Service

1The Trusted Platform Module (TPM) is not available in some countries.
2Print and copy speeds measured in accordance with ISO/IEC 24734 and ISO/IEC 24735 respectively (ESAT). For more information see: www.lexmark.com/ISOspeeds.
3“Recommended Monthly Page Volume” is a range of pages that helps customers evaluate Lexmark’s product offerings based on the average number of pages customers plan to print on the device each month. Lexmark recommends that the number of pages per month be within the stated range for optimum device performance, based on factors including: supplies replacement intervals, paper loading intervals, speed, and typical customer usage.
4“Maximum Monthly Duty Cycle” is defined as the maximum number of pages a device could deliver in a month using a multishift operation. This metric provides a comparison of robustness in relation to other Lexmark printers and MFPs.
5Average continuous black or continuous composite CMY declared cartridge yield up to this number of standard pages in accordance with ISO/IEC 19798.
6Actual Yield may vary based on other factors such as device speed, paper size and feed orientation, toner coverage, tray source, percentage of black-only printing and average print job complexity.
7This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (http://www.openssl.org/)

Supplies

What’s the difference between our Return Programme supplies?

Return Programme supplies

  • Supplies sold at a discount versus the prices of regular cartridges
  • Customer agrees to use cartridges once and return to Lexmark for remanufacturing or recycling.
  • Note: Not all supplies are available through the Return Programme

Scroll to Return Programme supplies

Regular supplies

  • Supplies sold at regular prices
  • Cartridges are still recyclable at no cost to you through the Lexmark Cartridge Collection Programme.

Scroll to regular supplies

Other supplies

  • Imaging kits
  • Developer units
  • Waste toner bottles, etc.

Scroll to other supplies

Accessories

Name Part no. Category
